Technical and safety information
Online Tectyl checkout is currently configured for Spain. For deliveries elsewhere in Europe, contact Coapsys to confirm availability and shipping before ordering.
- Carrier
- Solvent
- Chemical base
- Según ficha técnica oficial
- Colour
- Transparente
- Pack format
- Drum 20 L
- Minimum order
- 1 envase
For current hazard statements, precautions and transport information, consult the official English Safety Data Sheet before purchase or use. This page is not a substitute for the product label.
Documents
Technical Data Sheet (English) Application guide Safety Data Sheet (English)Technical documents are served by Coapsys from the official Tectyl Europe source.

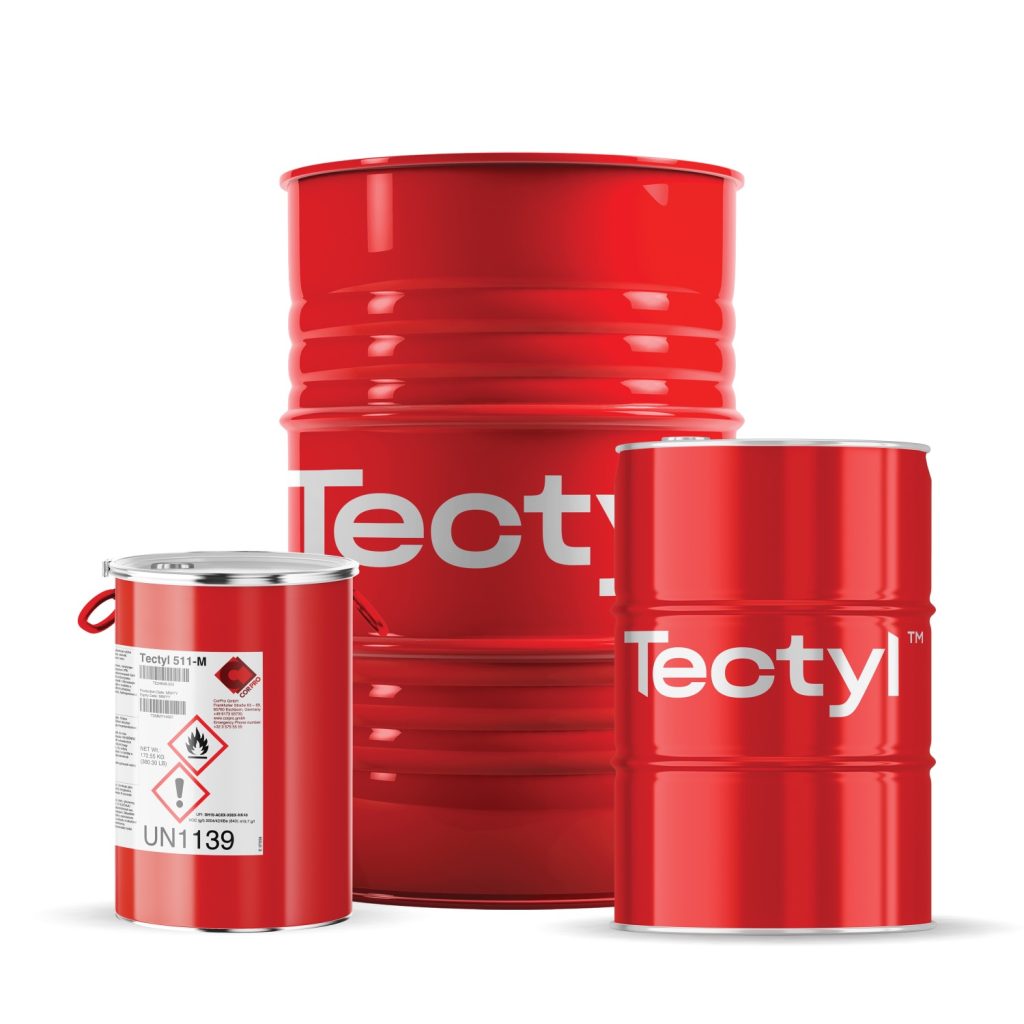

Tectyl 511-M is a solvent cutback, water displacing, oil-based corrosion preventive compound. Tectyl 511-M meets the performance requirements of Military Specification MIL-PRF-16173E Grade 5, Class 1. Tectyl 511-M is designed to protect ferrous and non-ferrous industrial parts and transportation components during covered shipment and inside storage. Tectyl 511-M cures to a light amber colored, transparent oily film.
Benefits and application considerations
- Superior ProtectionAt the recommended DFT Tectyl 511-M will protect against corrosion during storage and domestic transport.
- ProcessingTectyl 511-M is easy to apply and easy to remove, when no longer needed.
- EconomicalWith a DFT of only 7.5 microns, Tectyl 511-M can protect a large surface area with just a little amount of the product.
Technical characteristics
- Carrier
- Solvent
- Recommended Dry Film Thickness — Over metal profile
- 8 µm
- Corrosion — ISO 9227 NSS (min. days)
- 20 days
- Humidity — Humidity; 100 % RH; @ 40°C; ISO 6270-2 CH (Q-Panels, Type R, ASTM A1008)
- 40 days
- Protection Indoor — (min. months)
- 18 months
- Protection Outdoor — (min. months)
- 6 months
- MIL-PRF-16173E — Grade / class
- 5/1
Surface preparation
The maximum performance of Tectyl 511-M can be achieved only when the metal surfaces to be protected are clean, dry and free of rust, oil and mill scale. CorPro recommends a substrate temperature of 10-35 °C at the time of product application.
Application
Tectyl 511-M is formulated to be used as supplied. Do not thin Tectyl 511-M. CorPro recommends that the ambient and product temperature be 10-35 °C at the time of product application. Tectyl 511-M can be applied by low pressure air spray or dipping. Details on application can be found in the application chart.
Removal
Tectyl 511-M can in the wet phase be removed with Tectyl Biocleaner, Tectyl 150 or low-pressure steam. If dried and cured Tectyl 511-M can be removed with Tectyl Biocleaner or Tectyl 150.
Check the current official Technical Data Sheet and Safety Data Sheet before purchase or use. Coapsys can advise on product selection and application equipment.
