Technical and safety information
Online Tectyl checkout is currently configured for Spain. For deliveries elsewhere in Europe, contact Coapsys to confirm availability and shipping before ordering.
- Carrier
- Solvent
- Chemical base
- Cera
- Colour
- Ámbar
- Pack format
- Drum 20 L
- Minimum order
- 1 envase
For current hazard statements, precautions and transport information, consult the official English Safety Data Sheet before purchase or use. This page is not a substitute for the product label.
Documents
Technical Data Sheet (English) Application guide Safety Data Sheet (English)Technical documents are served by Coapsys from the official Tectyl Europe source.

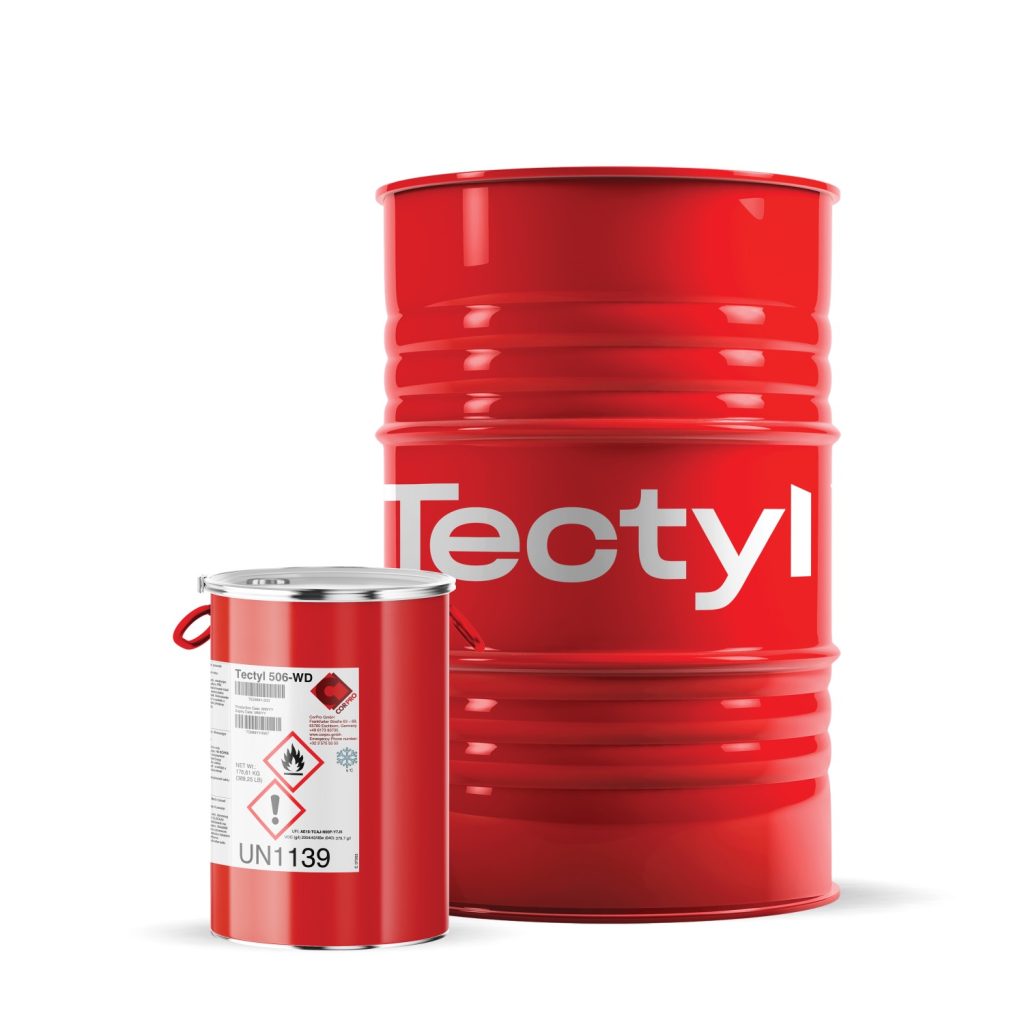

Tectyl 506-WD is solvent cutback, wax base, thixotropic, dark amber, water displacing corrosion preventive compound. Tectyl 506-WD is recommended for long-term protection of ferrous and non-ferrous metals, as an underbody coating of autos, trucks, trailers, etc. Tectyl 506-WD cures to a relatively firm, dark amber, resilient film. Tectyl 506-WD is the Water Displacing version of Tectyl 506.
Benefits and application considerations
- Superior Protection At the recommended DFT Tectyl 506-WD will protect against corrosion during storage, domestic and overseas transport.
- Inside and outside protection Tectyl 506-WD has excellent water displacement properties, which makes it suitable for inside and outside protection.
- Processing Tectyl 506-WD is easy to apply and easy to remove, when no longer needed.
- Economical With a DFT of only 50 microns, Tectyl 506-WD can protect a large surface with just little amount of the product.
Technical characteristics
- Carrier
- Solvent
- Recommended Dry Film Thickness — Over metal profile
- 50 µm
- Corrosion — ISO 9227 NSS (min. days)
- 25 days
- Humidity — Humidity; 100 % RH; @ 40°C; ISO 6270-2 CH (Q-Panels, Type R, ASTM A1008)
- 100 days
- Protection Indoor — (min. months)
- 24 months
- Protection Outdoor — (min. months)
- 12 months
Surface preparation
The maximum performance of Tectyl 506-WD can be achieved only when the metal surfaces to be protected are clean, dry and free of rust, oil and mill scale and a substrate temperature of 10-35 °C at the time of product application.
Application
Tectyl 506-WD is formulated to be used as supplied. Due to its composition Tectyl 506-WD can be subject to postproduction viscosity changes and/or wax sedimentation. Always ensure homogeneous consistency by agitation before use. If the product thickens due to cold storage or loss of solvent during use, thinning with max. 1-2% of Tectyl 150 is possible to get the desired consistency. Incorrect thinning will affect film build, dry time and potentially product performance. Tectyl 506-WD can be applied by airless spray, low pressure air spray or brush. Details on application can be found in the application chart.
Removal
Tectyl 506-WD can in the wet phase be removed with Tectyl Biocleaner, Tectyl 150 or low-pressure steam. If dried and cured Tectyl 506-WD can be removed with Tectyl Biocleaner or Tectyl 150.
Check the current official Technical Data Sheet and Safety Data Sheet before purchase or use. Coapsys can advise on product selection and application equipment.
